RIMFIRE SUPPRESSORS

For sales info contact Brooks@ThompsonMachine.net



The Horizon (1 to 10 Baffle Modular .22LR)

The idea of modular suppressors is nothing new and dates as far back as the 1940’s, but with modern materials and machining, it is quickly becoming an industry standard.  Thompson Machine is excited take this technology to the next level with our new (for 2017), Horizon Modular .22LR Rimfire Suppressor.  The Horizon Consists of 10 total baffles (4 long baffles & 6 short baffles) and a muzzle cap made of 7075 aluminum, and a base cup made of Grade 5 Titanium.  The end user can choose to shoot the Horizon as a 1 to 10 baffle suppressor depending on preference of length and suppression desired.

CLICK HERE TO SEE A VIDEO OF THE HORIZON IN ACTION!



Caliber…………………………22lr

Overall Length………………..6.85” (Full 10 Baffle Stack)

Weight…………………………3.8oz

Baffle Material…………………7075 Space T6 Aluminum

Base Cup Material………………..Grade 5 Titanium (6AL-4V)

Design…………………………Modular, Take-apart, No Special Tool Needed

Finish…………………………..Matte Bead Blast Natural Titanium/ Matte Black Anodized (add $50)

MSRP………………………….$449



The Operative TD (Take-Down Complete Rifle)

Introduced in 2012 and based on our popular Operative C, our Operative TD is a complete integrally-suppressed Ruger 10/22 Take-Down Rifle with no equal.  We start with factory-new Ruger 10/22  Take-Down Rifles, and integrally suppress the barrel, the result being one of the most quiet, versatile, compact, and light integrally suppressed rifles on the market.   Each rifle is then extensively test fired before it leaves our shop to ensure accuracy and reliability.  As with all of our integral suppressors, the Monocore baffle stack can be quickly and easily removed for cleaning by the end user.

CLICK HERE TO SEE A VIDEO OF THE OPERATIVE TD IN ACTION!

*Note:  Operative TD Delivery Times are subject to availability of the popular 10/22 Take-Down.  If you already have a 10/22 Takedown, we offer the Operative TD conversion service on your 10/22 Takedown front end for $850.  Email us at sales@thompsonmachine.net for details on sending in your front end for conversion.

Specifications:

Caliber…………………………22lr

Overall Length………………..34.5”

Barrel (Suppressed) Length…………………17.375”

Barrel Diameter………………920”

Weight…………………………4lb 6oz

Tube Material…………………316 Stainless Steel (Matte Bead-Blasted Finish)

Baffle Material………………..6061 T6

Design…………………………Monocore, Take-apart Tool Included

Finish…………………………..Matte Bead Blast Natural Stainless/ Matte Black Anodized

MSRP………………………….$1195



The Isis22

The Culmination of countless hours of R&D, the Thompson Machine Isis22 sets a new standard for what a rimfire suppressor should be.  With outstanding sound suppression on nearly every rimfire host firearm and little to no audible FRP, we think it’s the perfect .22LR can.  The Isis22’s features include a threadless-tube monocore design that is both easy and quick to take apart and clean, full-auto rating, .22 Mag and .17HMR rating (on rifle-length barrels), and an affordable price tag.

CLICK HERE TO SEE A VIDEO OF THE ISIS22 IN ACTION!

Specifications:

Caliber……………………….22lr, Full-Auto Rated, .22Mag and .17HMR Rated (on rifle-length hosts)

Overall Length………………6.5”

Diameter…………………….1.125”

Weight……………………….4.7oz

Tube Material……………….6061 T6

Baffle Material………………6061 T6

Design………………………..Mono-Baffle, Tool-Less Disassembly

Finish…………………………Matte Black Anodized

Attachment…………………..1/2-28 threads

MSRP…………………………$315

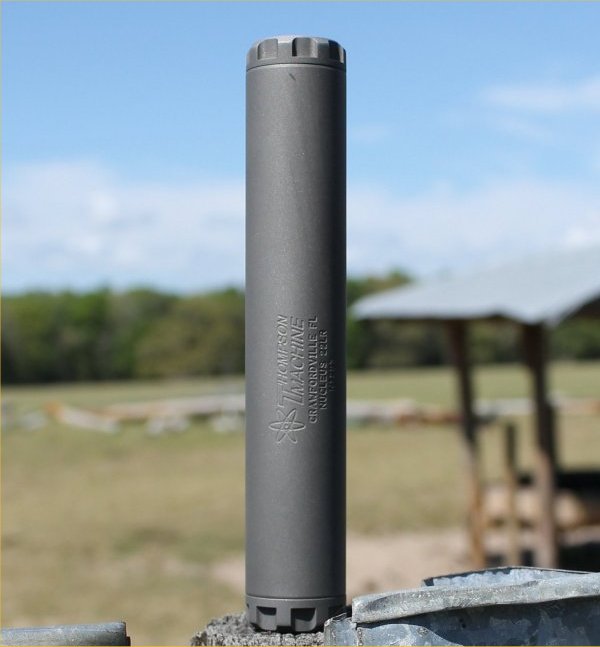

The Nucleus

If you want the absolute quietest, toughest, baddest rimfire suppressor on the market, you want the (New for 2017) Nucleus .22.  Constructed entirely of Grades 5 and 9 titanium with  the strength of our threadless-tube design, the Nucleus will last several lifetimes.  In addition to its toughness and quietness, its rating for .22LR, .22WMR, .17HMR, .17WSM, 5.7×28 and .22 Hornet makes it a versatility winner as well.  The Nucleus features amazing sound suppression on nearly every rimfire host firearm and little to no audible FRP with outstanding ease of cleaning.

CLICK HERE TO SEE A VIDEO OF THE NUCLEUS .22 IN ACTION!

Specifications:

Caliber……………………….22lr, Full-Auto Rated, .22Mag Full-Auto Rated,  .17HMR, .17WSM, .22 Hornet, 5.7×28

Overall Length………………6.5”

Diameter…………………….1.125”

Weight……………………….7.8oz

Tube Material……………….Grade 9 Titanium

Baffle Material………………Grade 5 Titanium

Design………………………..Monocore, Tool-Less Disassembly

Finish…………………………Natural Bead-Blasted Titanium

Attachment…………………..1/2-28 threads

MSRP…………………………$695

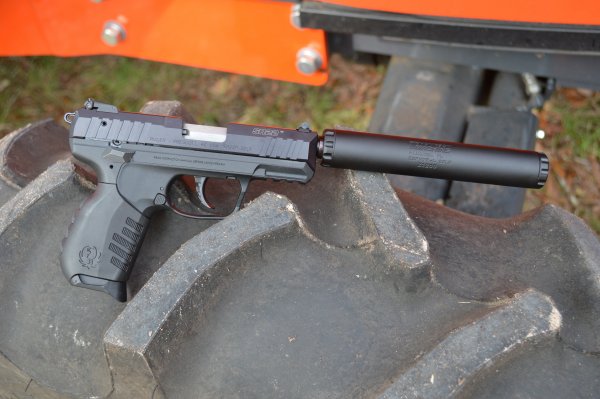

The Zephyr

The Thompson Machine Zephyr is truly an industry first.  It combines all of the desirable qualities of industry-leading .22 suppressors into a package that is affordable for most shooters.  On either a pistol or rifle host, the Zephyr achieves excellent sound reduction, comparable to, or exceeding that of suppressors costing twice as much.  The  Zephyr is built using the finest aircraft grade steel alloy tube for the highest possible strength of the registered part, and aluminum alloys throughout the rest of the suppressor to keep it light.  The Zephyr can be fully disassembled for cleaning by the end-user, and includes our take-down tool at no extra charge.  By choosing the Thompson Machine Zephyr, you get an extremely compact, light, quiet and affordable .22lr suppressor that is built to last a lifetime.

CLICK HERE TO SEE A VIDEO OF THE ZEPHYR IN ACTION!

Specifications:

Caliber……………………….22lr

Overall Length………………5.95”

Diameter…………………….1.0”

Weight……………………….5.0oz

Tube Material……………….High-Strength Alloy Steel

Baffle Material………………6061 T6

Design………………………..Mono-Baffle, Take-apart Tool Included

Finish…………………………Matte Parkerized/Anodized

Attachment…………………..1/2-28 threads

MSRP…………………………$289



The Zephyr-L

For those who desire an EXTREMELY light rimfire suppressor without sacrificing suppression or strength, the Zephyr-L is the answer.  While it is of nearly identical design to our regular Zephyr, it utilizes an aluminum alloy tube (instead of steel alloy) to keep it absolutely feather-light.  The Zephyr-L  is equally at home on both rifle and pistol hosts, and delivers outstanding performance on any .22 host you choose to put it on. It’s threadless-tube design ensures strength and ease of disassembly, and its price is just as light on the wallet as the Zephyr-L is on the end of your gun.

CLICK HERE TO SEE A VIDEO OF THE ZEPHYR-L IN ACTION!

Specifications:

Caliber……………………….22lr

Overall Length……………….5.95”

Diameter…………………….1”

Weight……………………….3.2oz

Tube Material……………….Hard Anodized 6061 T6

Baffle Material………………Hard Anodized 6061 T6

Design………………………..Monocore, Take-apart Tool Included

Finish…………………………Matte Black Anodized

Attachment…………………..1/2-28 threads

Full Auto Rated………………Yes

MSRP…………………………$289



The Wasp

Don’t be fooled by the Wasp’s size.  By using a cutting-edge baffle stack combined with artificial environment technology the Wasp is able to outperform .22 suppressors that are twice its size.  We purpose built this suppressor for the Beretta 21a, but it works great on any .22 host.  Just a little bit bigger than a tube of chapstick, at 4″ in length by .875″ diameter, the Wasp combined with your .22 makes a unique and exceptionally quiet and compact package.  Note that the Wasp is designed to be shot wet on pistol hosts, but it performs very well dry on .22lr rifle hosts.

CLICK HERE TO SEE A VIDEO OF THE WASP IN ACTION!

Note:  Wasp is pictured above in the standard spun stainless finish. Optional matte black cerakote finish is available for $50 extra.

Specifications:

Caliber………………………….22lr

Overall Length…………………4.0”

Diameter……………………..875”

Weight………………………….3.0oz

Tube Material…………………316 Stainless

Baffle Material………………..6061 T6

Design…………………………Monocore, No Tool Required for Disassembly

Finish…………………………..Brushed Stainless, Matte Black Available $50 Extra

Attachment……………….1/2-28 Threads

MSRP………………………….$249



The Operative

If you want your 10/22 to be an amazingly quiet, compact, and discrete package, the Thompson Machine Operative integrally suppressed barrel system is the one for you.  Built with a .920” barrel profile just like a stock 10/22 bull barrel, the Operative installed on your rifle will look no different than a standard target model 10/22.  It will, however, sound very different.  Thanks to its ported design, even with high-velocity, inexpensive, bulk pack ammo, all you will hear when shooting the Operative is your gun’s bolt cycling, and the bullet hitting your target!  Unlike most 10/22 integrally suppressed barrels, the baffle stack in the Operative can be quickly and easily removed for cleaning with our included take-down tool for a lifetime of service.

CLICK HERE TO SEE A VIDEO OF THE OPERATIVE IN ACTION!

Specifications:

Caliber…………………………22lr

Overall Length………………..17”

Diameter……………………….920”

Weight…………………………1lb 5oz

Tube Material…………………4130 Aircraft Steel

Baffle Material………………..6061 T6

Design…………………………Mono-Baffle, Take-apart Tool Included

Finish…………………………..Matte Parkerized/Anodized

MSRP………………………….$675



The Operative-C (Complete)

We now offer our Operative as a complete turn-key suppressed rifle!  We start with factory-new Ruger 10/22 rifles, and build them from the ground up into amazingly quiet, reliable, compact, and light weapon systems.  Each rifle is then extensively test fired before it leaves our shop to ensure accuracy and reliability.  We offer our Operative-C complete suppressed rifle at approximately the same price as competitors’ suppressed 10/22 barrels.

CLICK HERE TO SEE A VIDEO OF THE OPERATIVE C IN ACTION!

Note: Operative C pictured with optional Hogue Ghillie Tan stock.  The Operative C comes standard in the Black Hogue Stock.

Specifications:

Caliber…………………………22lr

Overall Length………………..34.5”

Barrel (Suppressed) Length…………………17”

Barrel Diameter………………920”

Weight…………………………4lb 6oz

Tube Material…………………4130 Aircraft Steel

Baffle Material………………..6061 T6

Design…………………………Mono-Baffle, Take-apart Tool Included

Finish…………………………..Matte Parkerized/Anodized

MSRP………………………….$999/ (Includes  Black Hogue Overmold stock)



The Operative S (Short)

Based on our Operative integral 10/22 barrel, we designed our Operative-S for Ruger Charger and 10/22 SBR owners who want an integrally suppressed package.  At 11”, our Operative-S perfectly replaces the barrel of your Ruger Charger, and gives you a uniquely transportable, small, and quiet weapon for target practice, plinking, or hunting.  Just like its big brother, the Operative-S is ported to allow use of high-velocity ammo, disassembles for cleaning, and includes our proprietary take-down tool.
Specifications:

Caliber…………………………22lr

Overall Length………………..11”

Barrel Diameter………………920”

Weight…………………………13.2oz

Tube Material…………………4130 Aircraft Steel

Baffle Material………………..6061 T6

Design…………………………Mono-Baffle, Take-apart Tool Included

Finish…………………………..Matte Parkerized/Anodized

MSRP………………………….$565



The Operative B

Go to the fridge and grab a can of soda.  Stand in a quiet room and open it.  That’s what the Operative B sounds like firing CCI Minimag!  With the Operative B, we have truly created an integrally suppressed bolt-action .22 rifle unlike any other.  The suppressor core and tube are fully removable for cleaning, and the barrel is conservatively ported to keep inexpensive bulk pack high-velocity ammunition subsonic. (~1030fps with CCI Minimag)  The barrel inside the suppressor tube is a full 16.5” and the overall length of the gun is identical to a factory MkII.  We designed and manufacture this rifle for the suppressor enthusiast who demands the quietest possible package, and the Operative B is the quietest suppressed firearm that we know of.

CLICK HERE TO SEE A VIDEO OF THE OPERATIVE B IN ACTION!

Specifications:

Caliber…………………………22lr

Overall Length…………………39.5”

Overall Barrel Length…………21”

Barrel Diameter……………….1”

Weight………………………….5lb 8oz

Tube Material…………………4130 Aircraft Steel

Baffle Material………………..6061 T6

Design…………………………Mono-Baffle, Take-apart Tool Included

Finish…………………………..Matte Parkerized/Anodized

MSRP………………………….$899

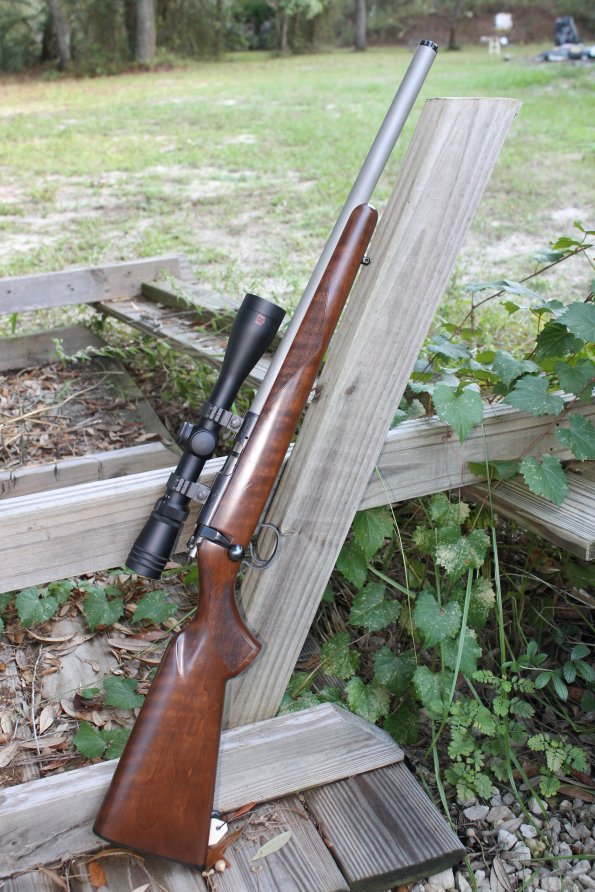

The Operative B CZ

We now offer our Operative B integrally-suppressed barrel system on the beautiful and accurate CZ 455 rifle!  If you want the finest integrally-suppressed bolt-action .22LR rifle on the market, this is the one for you.

Note: Operative B CZ is pictured below with standard bead-blasted stainless-finish tube.  Available with tube in black Cerakote finish for $70 upcharge.

Specifications:

Caliber…………………………22lr

Overall Length………………..34.5”

Barrel (Suppressed) Length…………………17.5”

Barrel Diameter………………920”

Weight…………………………5lb 3oz

Tube Material………………… Stainless Steel

Baffle Material………………..6061 T6

Design…………………………Mono-Baffle, Take-apart Tool Included

Finish…………………………..Matte Bead-Blasted/Anodized

MSRP………………………….$1095

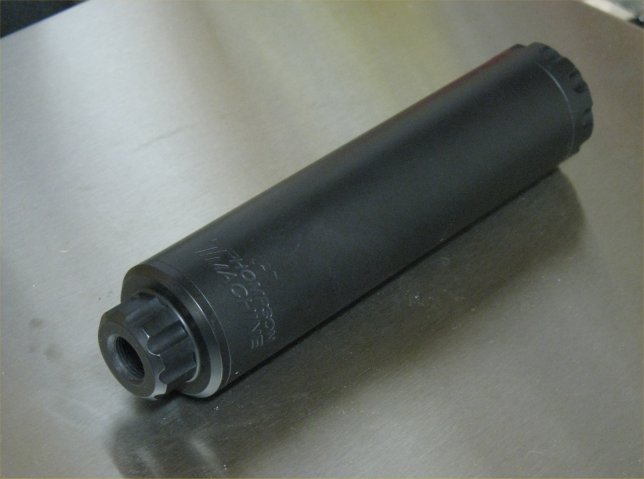

The CHD (Compact Heavy Duty)

There are some instances where a 1” diameter industry-standard .22 suppressor just doesn’t cut it, and that’s where our CHD comes in.  At 1.5” diameter by 5.75” long, we specifically designed the CHD to fit inside most standard quad rail AR hand guards to perfectly complete your .22LR AR build.  Instead of looking strange and out of scale like a 1” can often looks sticking out of your hand guard,  the CHD will be perfectly in scale with your rifle build.  In addition, the CHD is equally at home on subgun .22LR conversions and bolt-action or semi-auto .22LR or .22 Magnum rifles.  It looks and sounds  great on pretty much any host, so if you like the “larger can” look, the CHD is for you.  The CHD is rated for .22LR full-auto fire and .22 magnum, and disassembles easily for cleaning.

Specifications:

Caliber……………………….22lr (.22WMR and .17HMR Rated)

Overall Length………………5.75”

Diameter…………………….1.5”

Weight……………………….7.0oz

Tube Material……………….6061 T6

Baffle Material………………6061 T6

Design………………………..Mono-Baffle

Finish…………………………Anodized Matte Black

Attachment…………………..1/2-28 threads

MSRP…………………………$329
